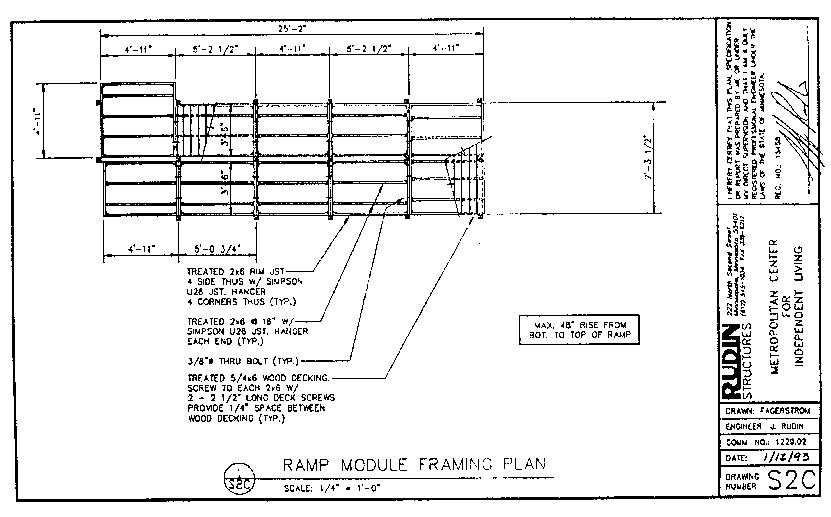

Rudin Drawing: Ramp Module Framing Plan S2C

[engineering drawing of framing plan]

Click here for large (55kb) version
