RIGHT ANGLE TURN

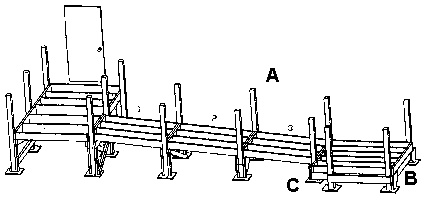

[sketch of 3 ramp modules and wide mid-level landing]


NOTE: To build a ramp with a right-angle turn, complete the first section of the ramp as described in previous pages (the lengths of each section do not need to be equal, ex: a 14'6" top section and 9' 8" lower section could be used). Use a 58"x 60" platform and support with 58"-long cross supports.
Five 4x4's are used for this landing. (See illustration on page 36.)
All support structure assembly is the same as for sloped sections.
